About the product

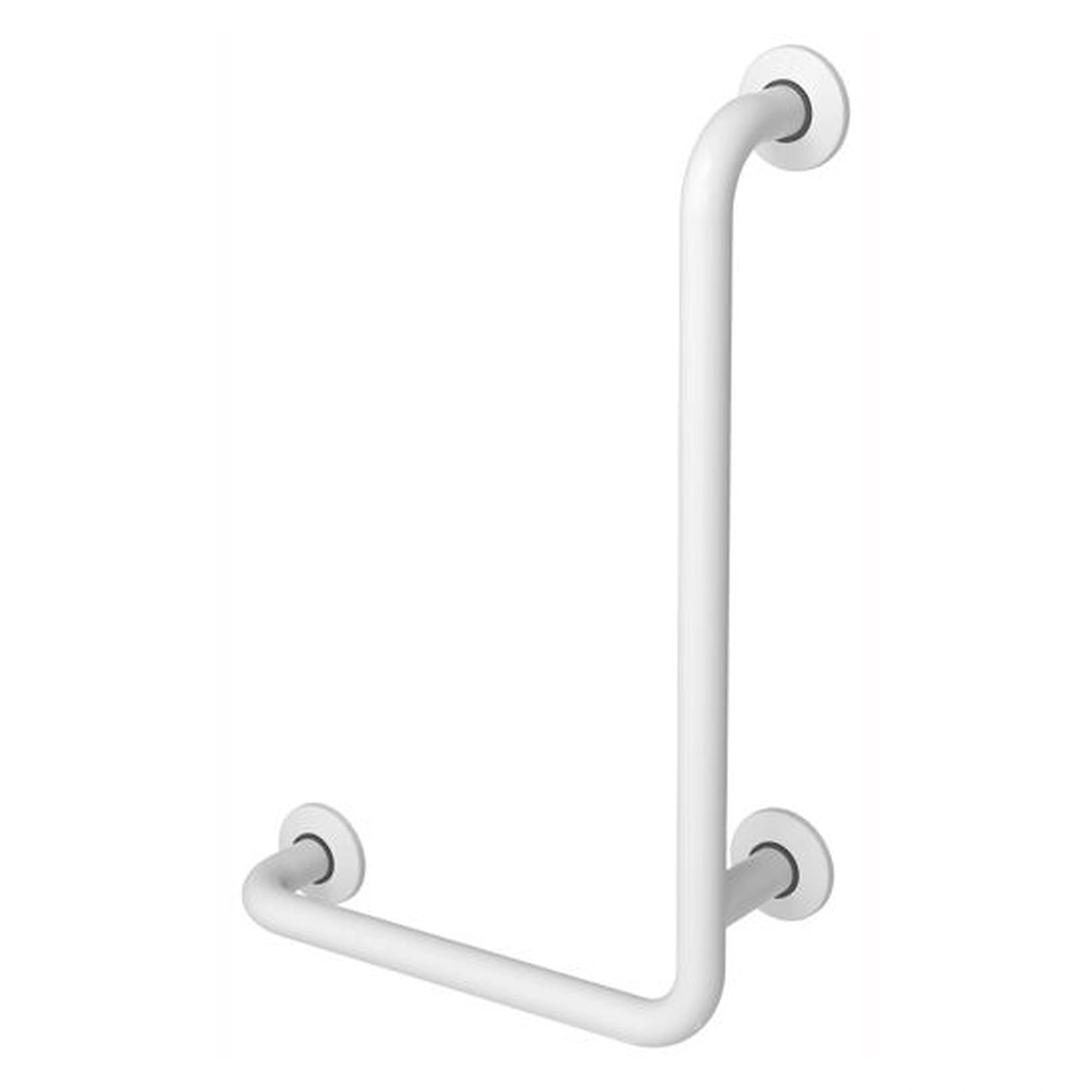

| Product type | Washbasin Grab Bar, right-hand |
|---|---|
| Category | Grab Bars |
| Brand | Faneco |
| EAN | 5901764295181 |
Features and functions
| Max. load (kg) | 120.0 kg |
|---|
Appearance and finish
| Color | White |
|---|---|
| Handrail shape | Angled |
| Finish type | White epoxy paint |
Materials
| Material | Carbon steel |
|---|---|
| Grab Bar Steel Thickness (mm) | 1.5 mm |
| Rosette Steel Thickness (mm) | 0.5 mm |
| Coating thickness (µm) | 70.0 µm |
| Support Steel Thickness (mm) | 3.0 mm |
| Steel joining | TIG welding |

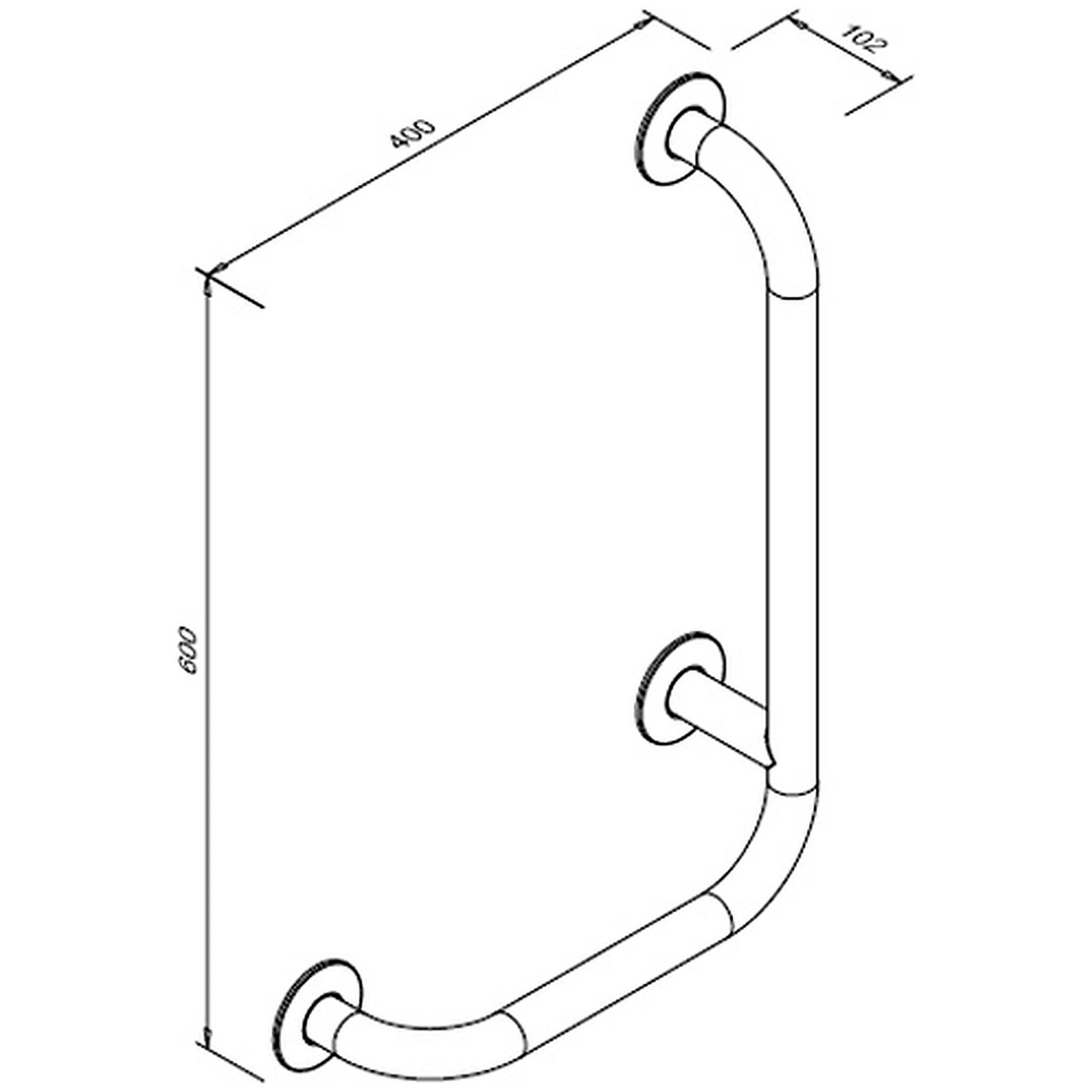

Dimensions and weight
| Pipe diameter (mm) | 32.0 mm |
|---|---|
| Height (mm) | 600.0mm |
| Width (mm) | 400.0 mm |
| Depth (mm) | 102.0mm |
| Vertical arm (mm) | 600.0 mm |
| Horizontal arm (mm) | 400.0 mm |
| Bend angle (°) | 90.0 ° |
| Distance from wall (mm) | 86.0 mm |
| Support diameter (mm) | 75.0 mm |
| Rosette diameter (mm) | 76.0 mm |
| Weight (kg) | 1.5 kg |
Mounting and connections
| Installation orientation | Right-hand |
|---|---|
| Mounting method | Wall-mounted |
| Number of mounting points | 9 |
| Number of support points | 3 |
| Wall plug size (mm) | 8mm x 50mm |
| Screw size (mm) | 5mm x 60mm |
Set contents
| Wall plugs included | Yes |
|---|---|
| Screws included | Yes |
Warranty
| Warranty (years) | 2 |
|---|---|
| Warranty Type | door-to-door |
Logistics – unit carton
| Carton weight | 1.7 kg |
|---|
