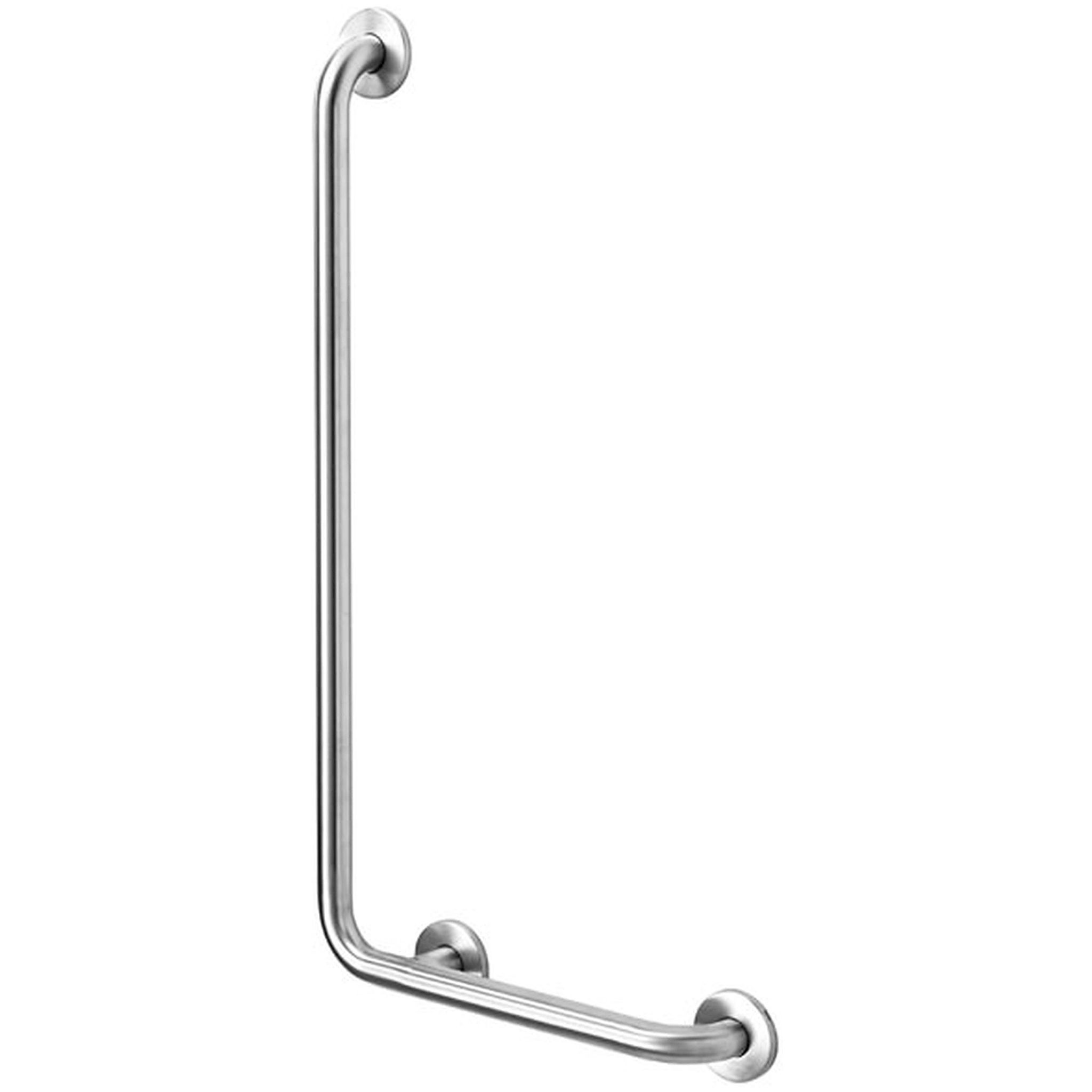

Faneco 7/5 Left 90° Angled Grab Bar for People with Disabilities, ⌀ 32 mm, Matte Steel
Faneco 7/5 Left 90° Angled Grab Bar for People with Disabilities, ⌀ 32 mm, Matte Steel - Image 2

Faneco 7/5 Left 90° Angled Grab Bar for People with Disabilities, ⌀ 32 mm, Matte Steel

Code: S32UKL75SNM    EAN: 5901764295143

The Faneco 90° left-angle grab bar, measuring 700 × 500 mm, is designed for restrooms adapted for people with disabilities and users with limited mobility. The model is made of AISI 304 stainless steel with a matte finish, featuring a tube with a diameter of Ø32 mm and arms measuring 700 mm and 500 mm in length. The structure has three support points, and the wall mounting with nine screws ensures a stable installation with a maximum load capacity of 120 kg.

A product for people with mobility impairments
2D and 3D models - DWG2D and 3D models - DWGUser and Installation ManualUser and Installation Manual
Pobierz kartę produktu (PDF)
Add to quote request

To view prices and buy online, log in or add products to a quote request.

If you need a larger quantity, contact us

About the product

Product typeAngled Grab Bar, left
CategoryGrab Bars
BrandFaneco
EAN5901764295143

Features and functions

Max. load (kg)120.0 kg

Appearance and finish

ColorSteel
Handrail shapeAngled
Finish typeMatte

Materials

MaterialAISI 304 stainless steel
Grab Bar Steel Thickness (mm)1.5 mm
Rosette Steel Thickness (mm)0.5 mm
Support Steel Thickness (mm)3.0 mm
Steel joiningTIG welding

Dimensions and weight

Pipe diameter (mm)32.0 mm
Height (mm)700.0mm
Width (mm)500.0 mm
Depth (mm)102.0mm
Vertical arm (mm)700.0 mm
Horizontal arm (mm)500.0 mm
Bend angle (°)90.0 °
Distance from wall (mm)86.0 mm
Support diameter (mm)75.0 mm
Rosette diameter (mm)76.0 mm
Weight (kg)1.8 kg

Mounting and connections

Installation orientationLeft-hand
Mounting methodwall-mounted
Number of mounting points9
Number of support points3
Wall plug size (mm)8mm x 50mm
Screw size (mm)5mm x 60mm

Set contents

Wall plugs includedYes
Screws includedYes

Warranty

Warranty (years)2
Warranty Typedoor-to-door

Logistics – unit carton

Carton weight2.0 kg
An angled wall-mounted grab bar designed for installation next to the shower or toilet. Three support points ensure a stable structure, and the 90° angle of the two arms provides the user with support in the shower or bathroom area.

The handrail is made of AISI 304 stainless steel with a matte finish. The tube has a diameter of Ø32 mm and a wall thickness of 1.5 mm. The steel components are joined using the TIG welding method.

  • Type: 90° angled handrail, 3-support
  • Orientation: left
  • Vertical arm: 700 mm
  • Horizontal arm: 500 mm
  • Material: AISI 304 stainless steel
  • Finish: matte
  • Pipe diameter: Ø32 mm
  • Pipe thickness: 1.5 mm
  • Bracket diameter: Ø75 mm
  • Bracket thickness: 3 mm
  • Diameter of the cover plate: Ø76 mm
  • Rosette thickness: 0.5 mm
  • Bend angle: 90°
  • Maximum load: 120 kg
  • Number of support points: 3
  • Joining components: TIG welding
  • Mounting: wall-mounted, 9-screw
  • Overall dimensions: 700 × 500 × 102 mm
  • Weight: 1.8 kg
