Faneco 8/4 Left 90° Angled Grab Bar for People with Disabilities, ⌀ 32 mm, White, Steel
Faneco 8/4 Left 90° Angled Grab Bar for People with Disabilities, ⌀ 32 mm, White, Steel - Image 2
Faneco 8/4 Left 90° Angled Grab Bar for People with Disabilities, ⌀ 32 mm, White, Steel - Image 3

Faneco 8/4 Left 90° Angled Grab Bar for People with Disabilities, ⌀ 32 mm, White, Steel

Code: S32UKL84SWB    EAN: 5901764295150

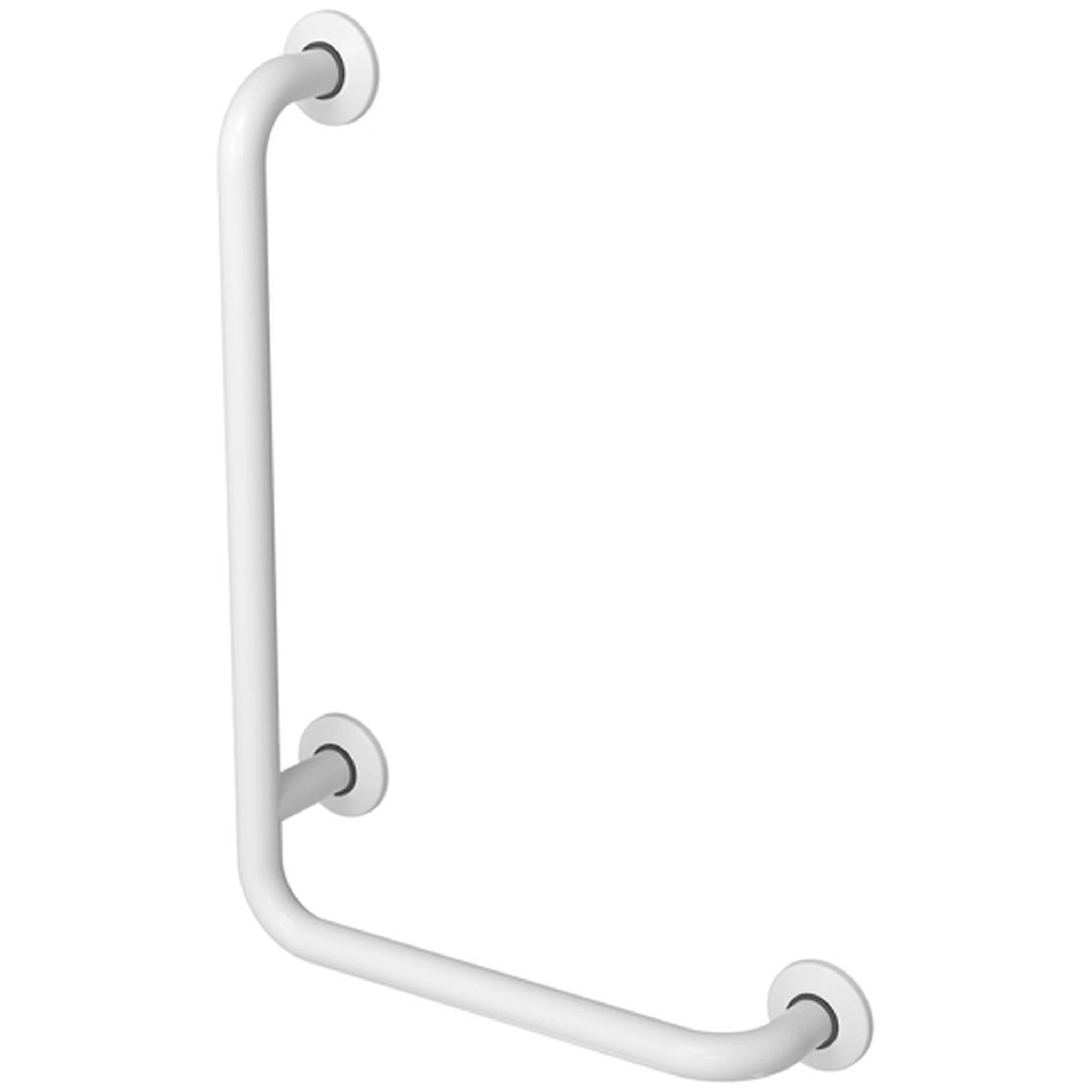

The Faneco 8/4 90° left-hand angled grab bar is designed for wall mounting next to a toilet, in the shower, and in restrooms adapted for people with limited mobility. The model is made of carbon steel coated with white epoxy paint, featuring a tube with a diameter of Ø32 mm and arms measuring 800 mm and 400 mm in length. The three-point mounting system, secured with nine screws, ensures a stable installation with a maximum load capacity of 120 kg.

A product for people with mobility impairments
2D and 3D Models - dwg2D and 3D Models - dwgUser and Installation ManualUser and Installation Manual
Add to quote request

To view prices and buy online, log in or add products to a quote request.

If you need a larger quantity, contact us

About the product

Product typeAngled Grab Bar, left
CategoryGrab Bars
BrandFaneco
EAN5901764295150

Features and functions

Max. load (kg)120.0 kg

Appearance and finish

ColorWhite
Handrail shapeAngled
Finish typeWhite epoxy paint

Materials

MaterialCarbon steel
Grab Bar Steel Thickness (mm)1,5 mm
Rosette Steel Thickness (mm)0.5 mm
Coating thickness (µm)70.0 µm
Support Steel Thickness (mm)3.0 mm
Steel joiningTIG welding

Dimensions and weight

Pipe diameter (mm)32.0 mm
Height (mm)800.0mm
Width (mm)400.0 mm
Depth (mm)102.0mm
Vertical arm (mm)800.0 mm
Horizontal arm (mm)400.0 mm
Bend angle (°)90.0 °
Distance from wall (mm)86.0 mm
Support diameter (mm)75.0 mm
Rosette diameter (mm)76.0 mm
Weight (kg)1.7 kg

Mounting and connections

Installation orientationLeft-hand
Mounting methodwall-mounted
Number of mounting points9
Number of support points3
Wall plug size (mm)8mm x 50mm
Screw size (mm)5mm x 60mm

Set contents

Wall plugs includedYes
Screws includedYes

Warranty

Warranty (years)2
Warranty Typedoor-to-door

Logistics – unit carton

Carton weight1.9 kg
An angled wall-mounted grab bar designed primarily for installation next to a shower or toilet, providing stable support for users of these fixtures.
The handrail is made of carbon steel coated with white epoxy paint. The tube has a diameter of Ø32 mm and a wall thickness of 1.5 mm. The steel components are joined using the TIG welding method.

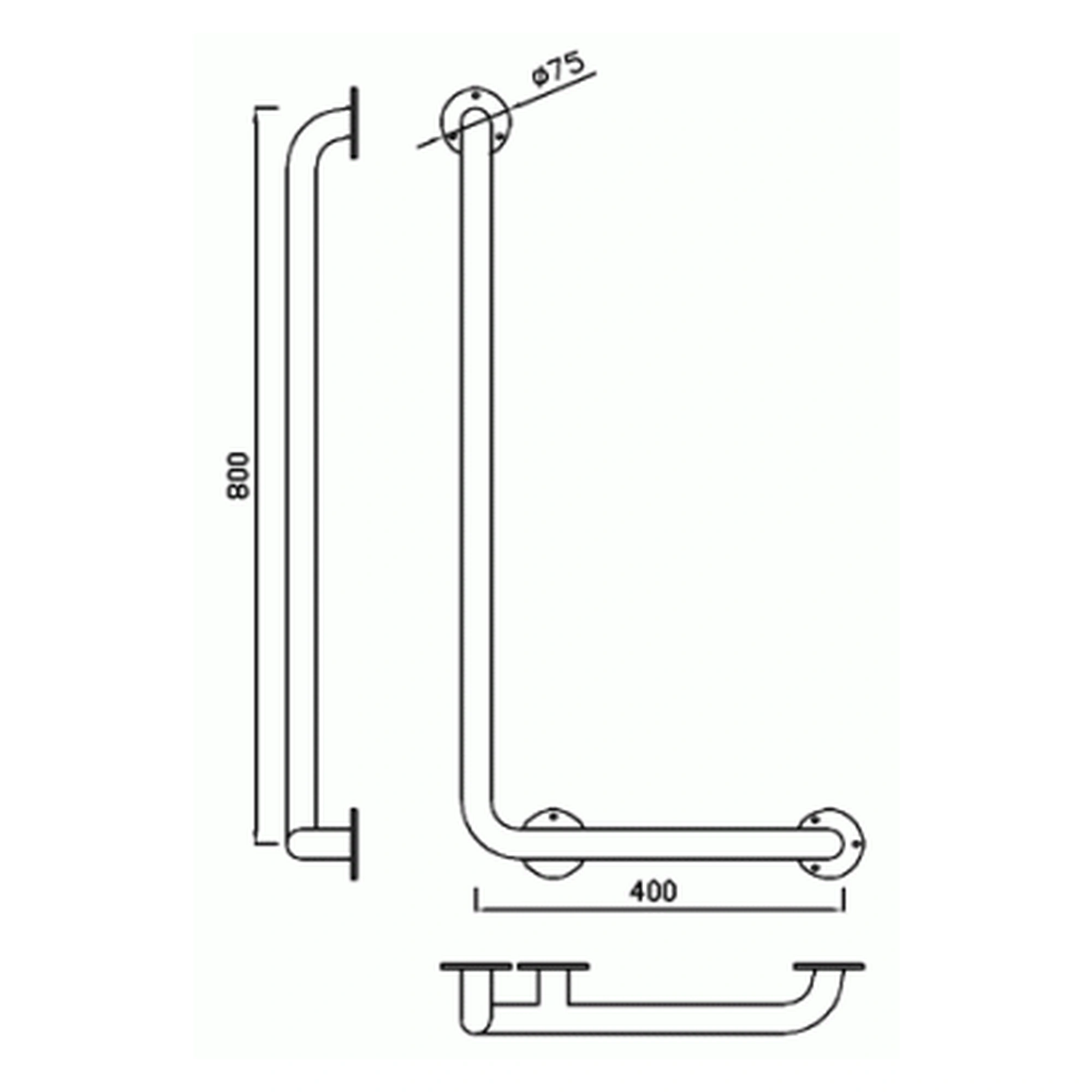

  • Type: 90° angled handrail, 3-support
  • Orientation: left
  • Vertical arm: 800 mm
  • Horizontal arm: 400 mm
  • Material: carbon steel
  • Finish: white epoxy paint
  • Pipe diameter: Ø32 mm
  • Pipe thickness: 1.5 mm
  • Bracket diameter: Ø75 mm
  • Bracket thickness: 3 mm
  • Diameter of the cover plate: Ø76 mm
  • Rosette thickness: 0.5 mm
  • Bend angle: 90°
  • Maximum load: 120 kg
  • Number of support points: 3
  • Joining components: TIG welding
  • Mounting: wall-mounted, 9-screw

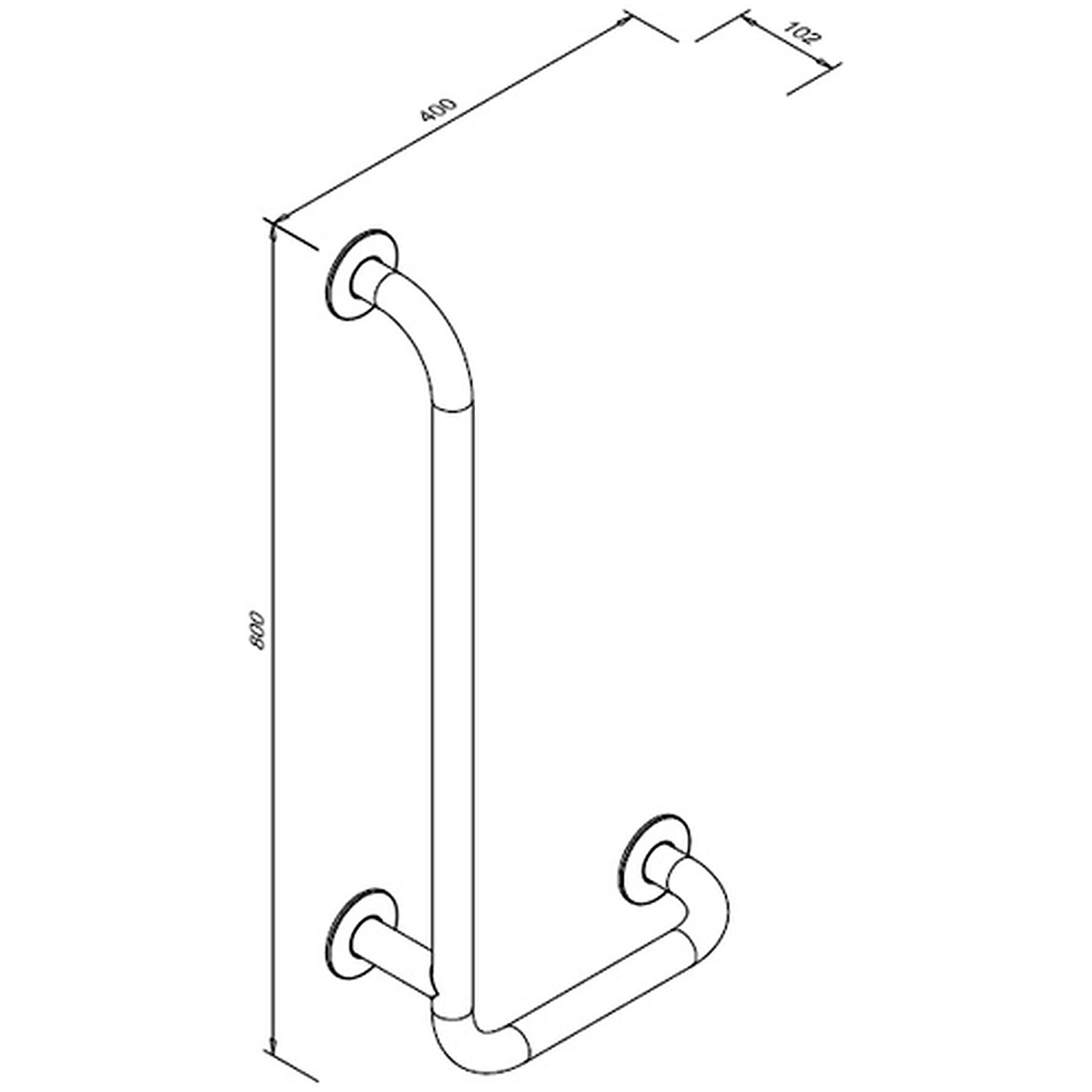

  • Overall dimensions: 800 × 400 × 102 mm
  • Weight: 1.7 kg
