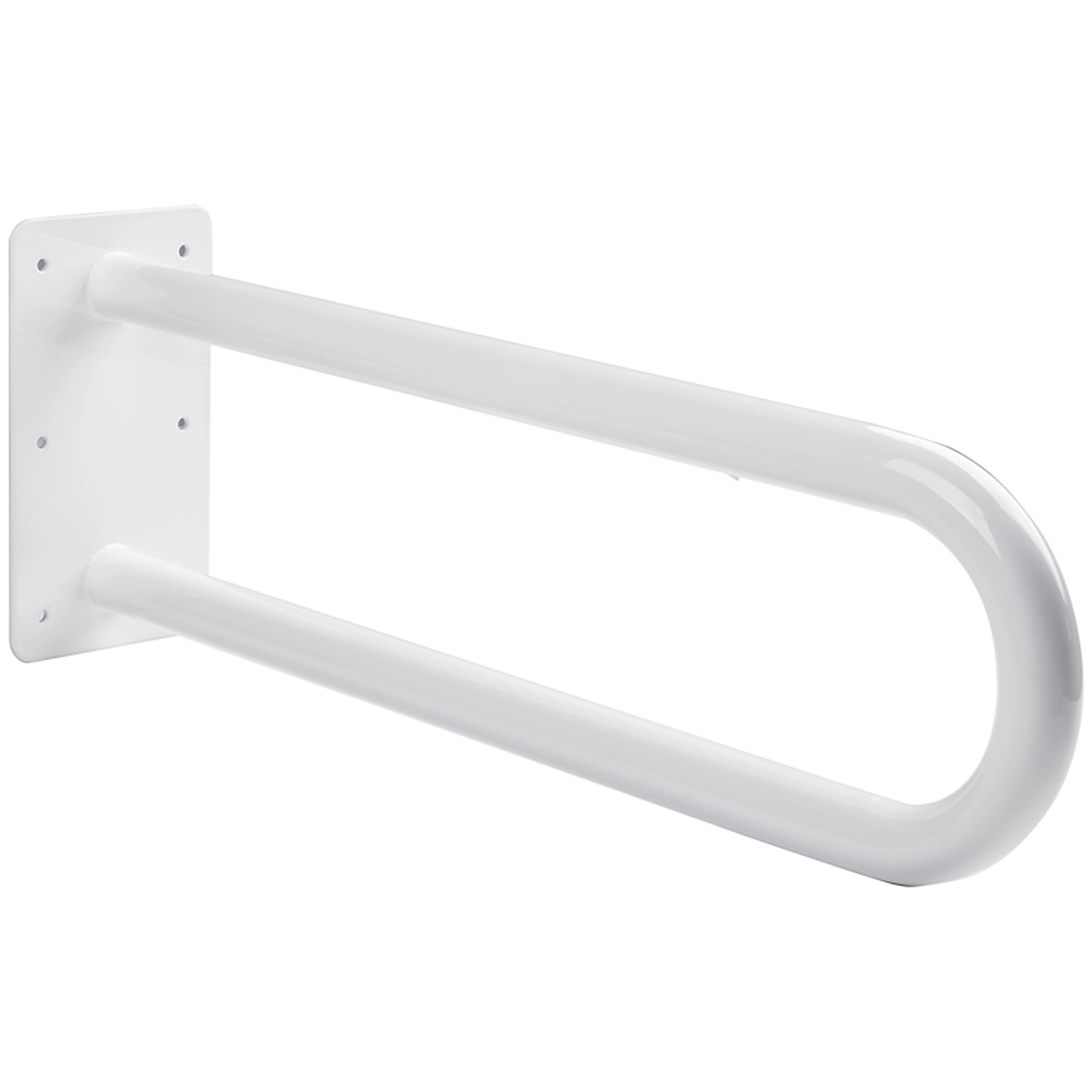

A wall-mounted grab bar with a curved profile designed for installation in restrooms as an additional safety feature for users of sanitary fixtures.
The handrail is made of carbon steel coated with white epoxy paint. The tube has a diameter of Ø32 mm and a wall thickness of 1.5 mm. The steel components are joined using the TIG welding method.
- Type: fixed, arched handrail
- Handrail length: 500 mm
- Material: carbon steel
- Finish: white epoxy paint
- Pipe diameter: Ø32 mm
- Pipe thickness: 1.5 mm
- Bracket thickness: 3 mm
- Maximum load: 120 kg
- Joining components: TIG welding
- Mounting: wall-mounted, 6-screw
- Diameter of mounting holes: Ø6.5 mm

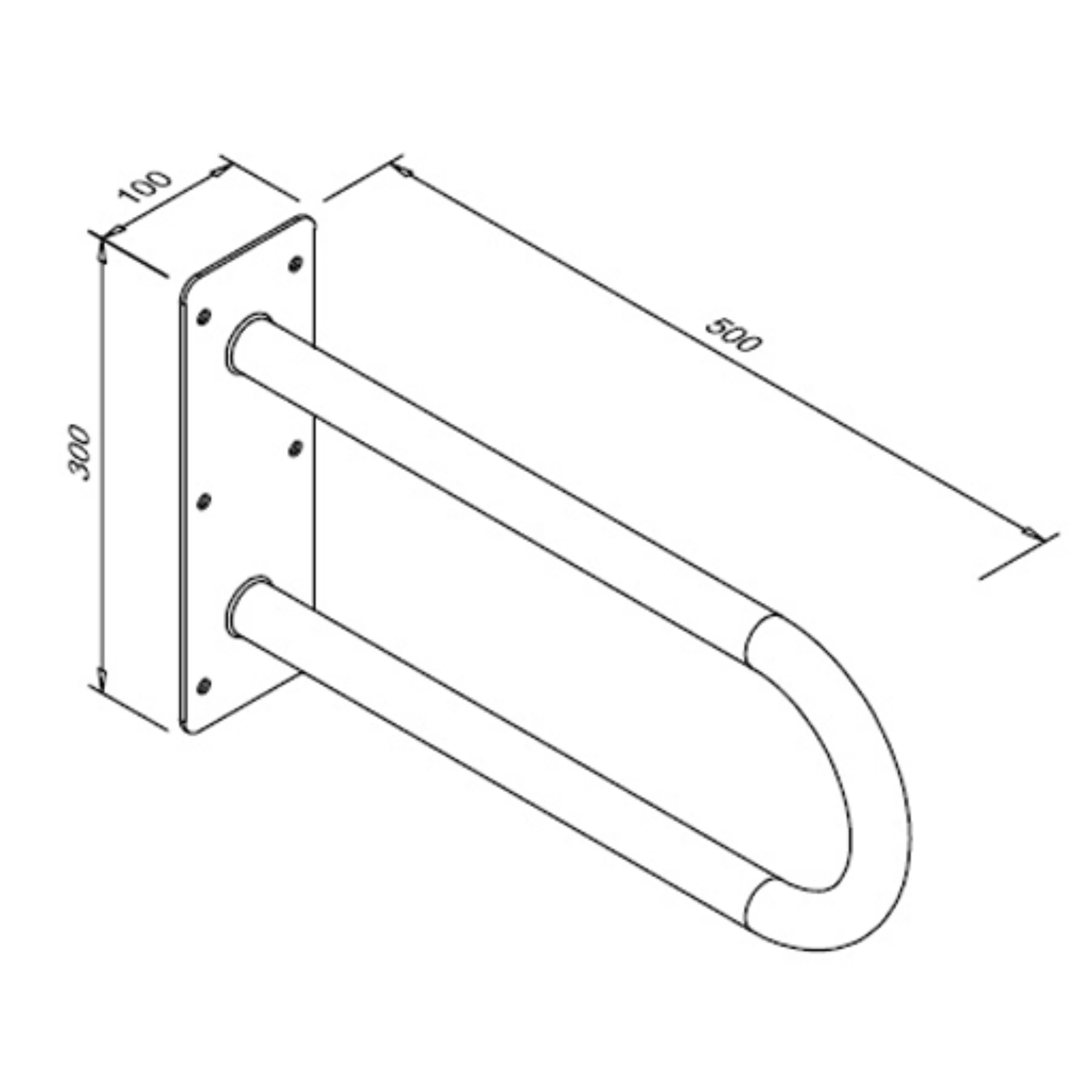

- Overall dimensions: 300 × 500 × 100 mm
- Weight: 2.3 kg
