A fixed wall-mounted support designed for installation on the left side of the sink. Three support points ensure a stable structure, and the two-arm design provides the user with support in the sink area.
The handrail is made of AISI 304 stainless steel with a matte finish. The tube has a diameter of Ø32 mm and a wall thickness of 1.5 mm. The steel components are joined using the TIG welding method.
- Type: fixed handrail, 3-support
- Orientation: left
- Long arm: 550 mm
- Short arm: 330 mm
- Material: AISI 304 stainless steel
- Finish: matte
- Pipe diameter: Ø32 mm
- Pipe thickness: 1.5 mm
- Bracket diameter: Ø75 mm
- Bracket thickness: 3 mm
- Diameter of the cover plate: Ø76 mm
- Rosette thickness: 0.5 mm
- Maximum load: 120 kg
- Number of support points: 3
- Joining components: TIG welding
- Mounting: wall-mounted, 9-screw
- Diameter of mounting holes: Ø6.5 mm

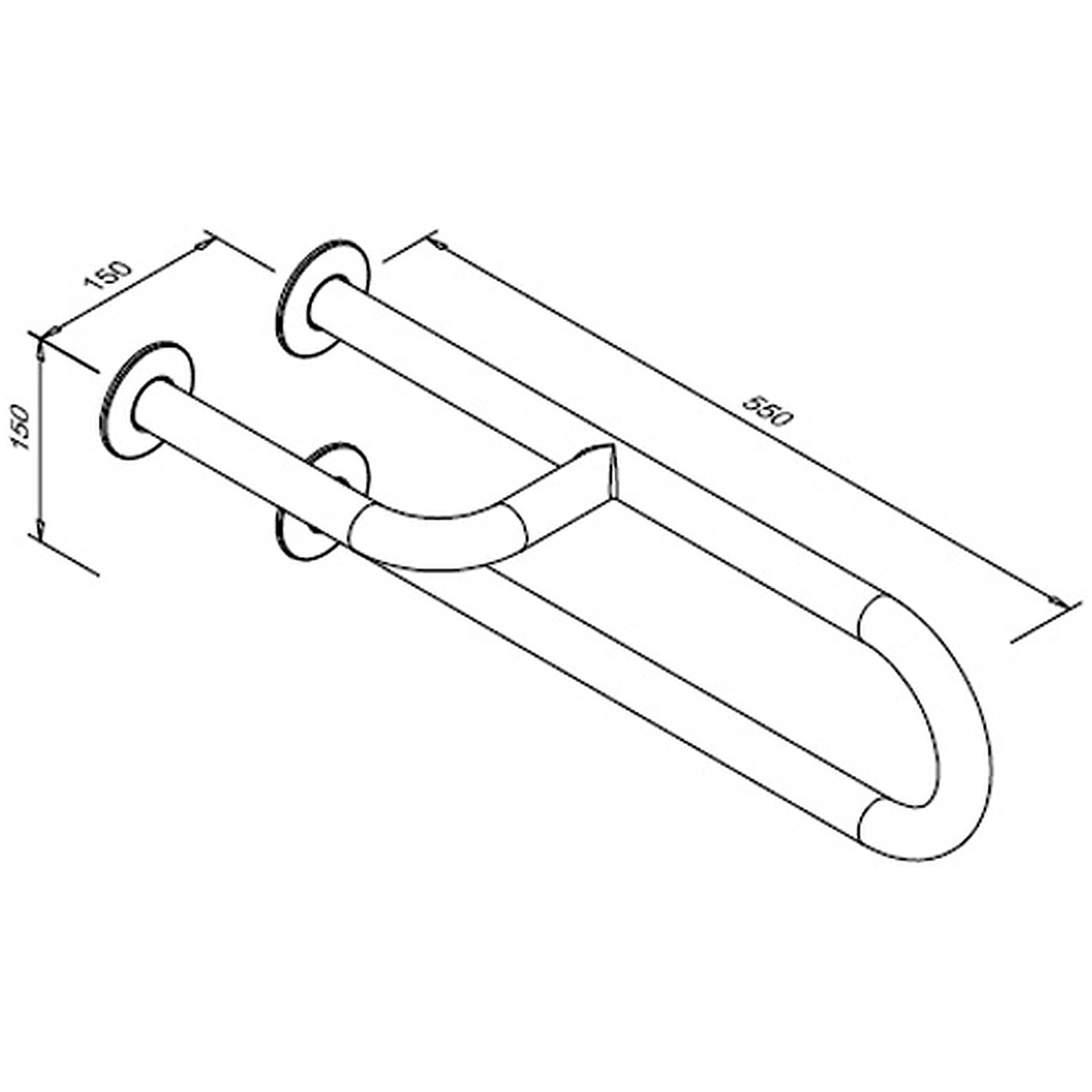

- Overall dimensions: 150 × 550 × 150 mm
- Weight: 1.9 kg
