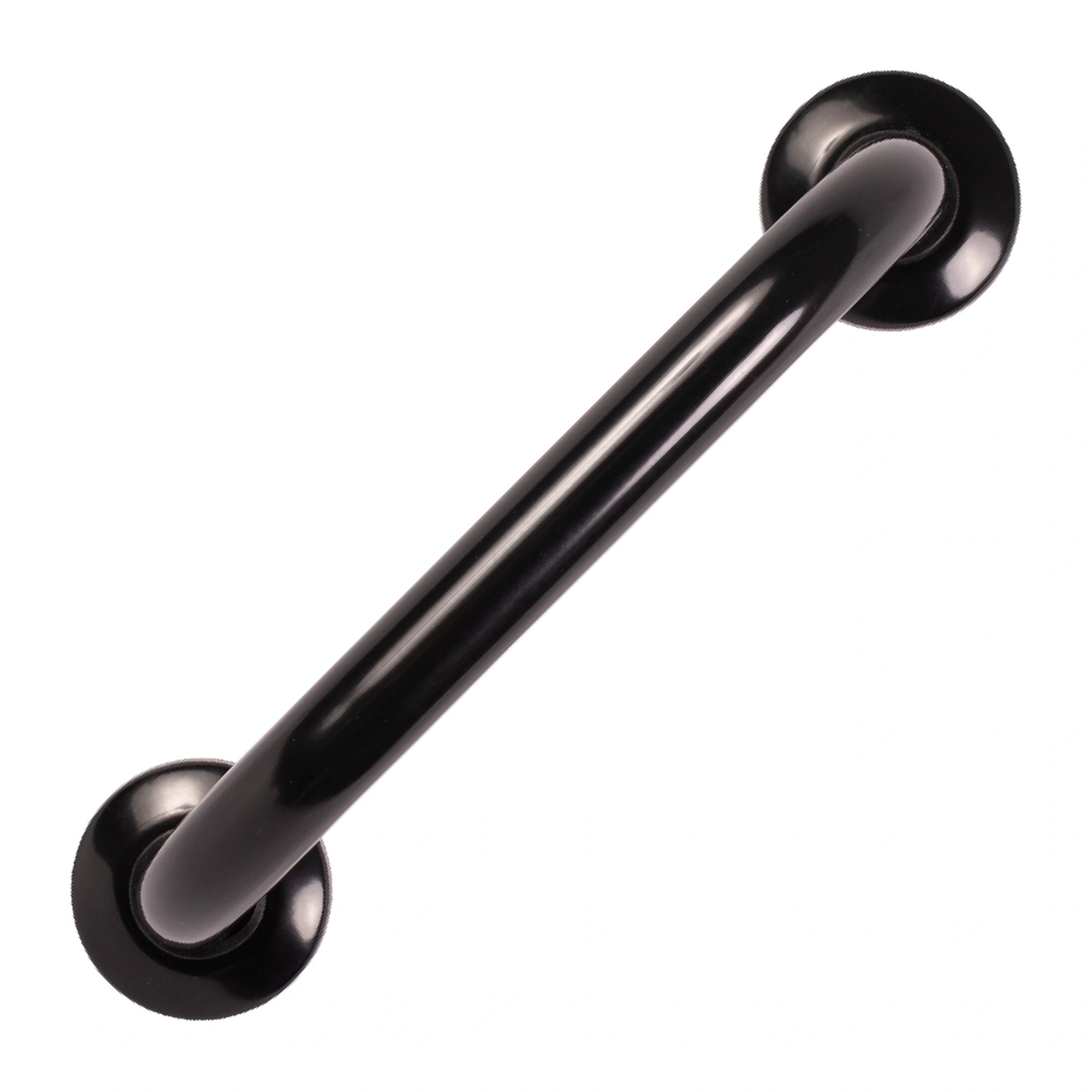

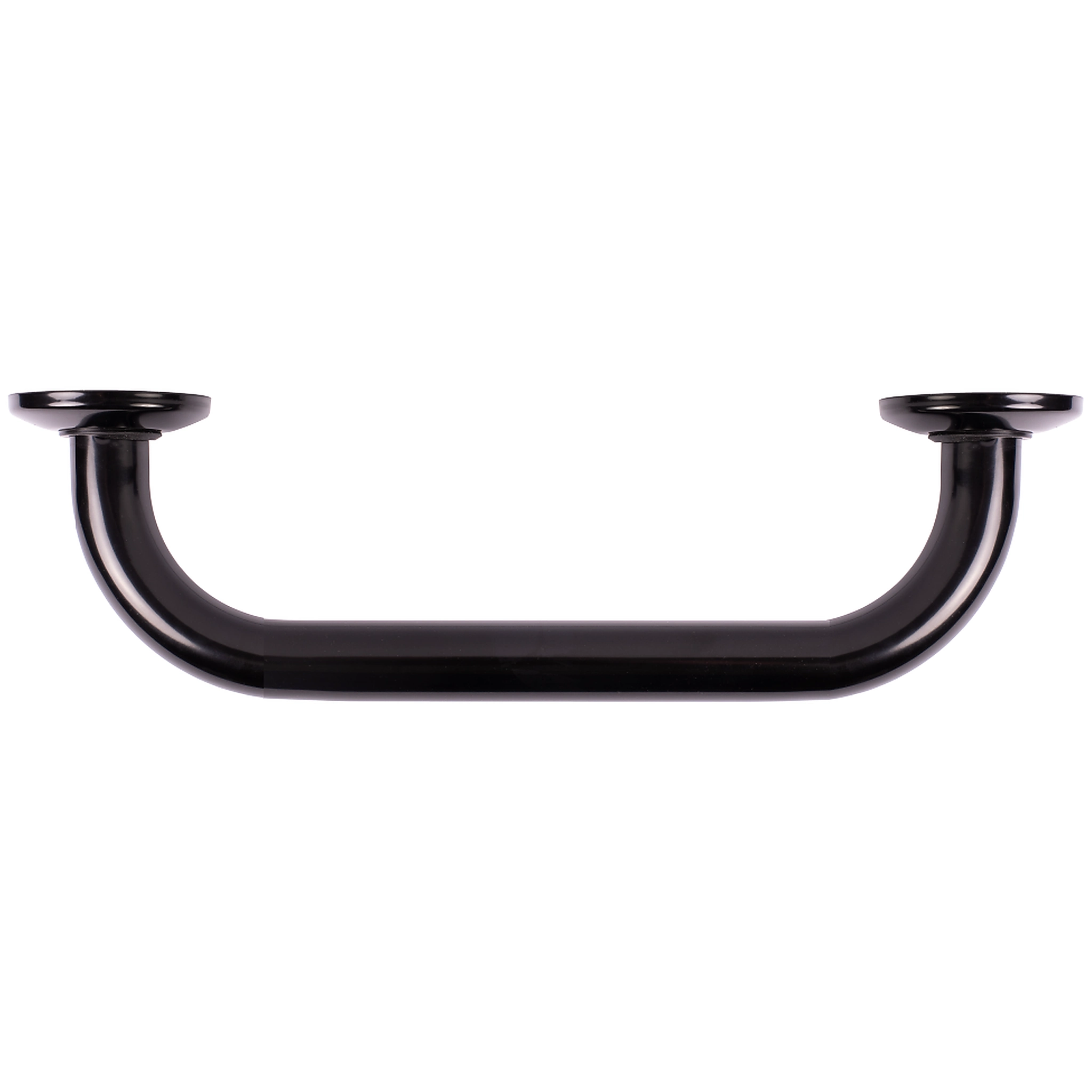

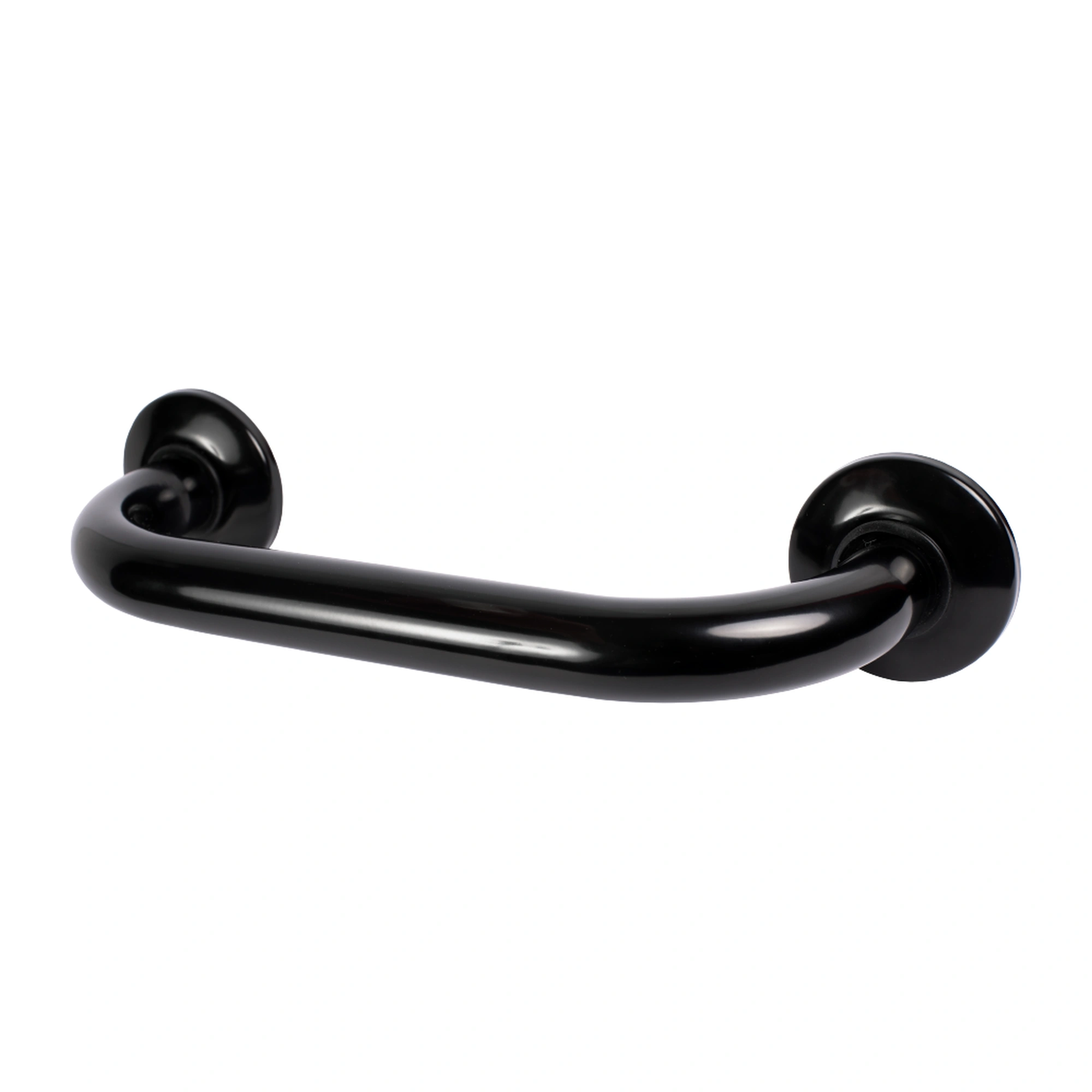

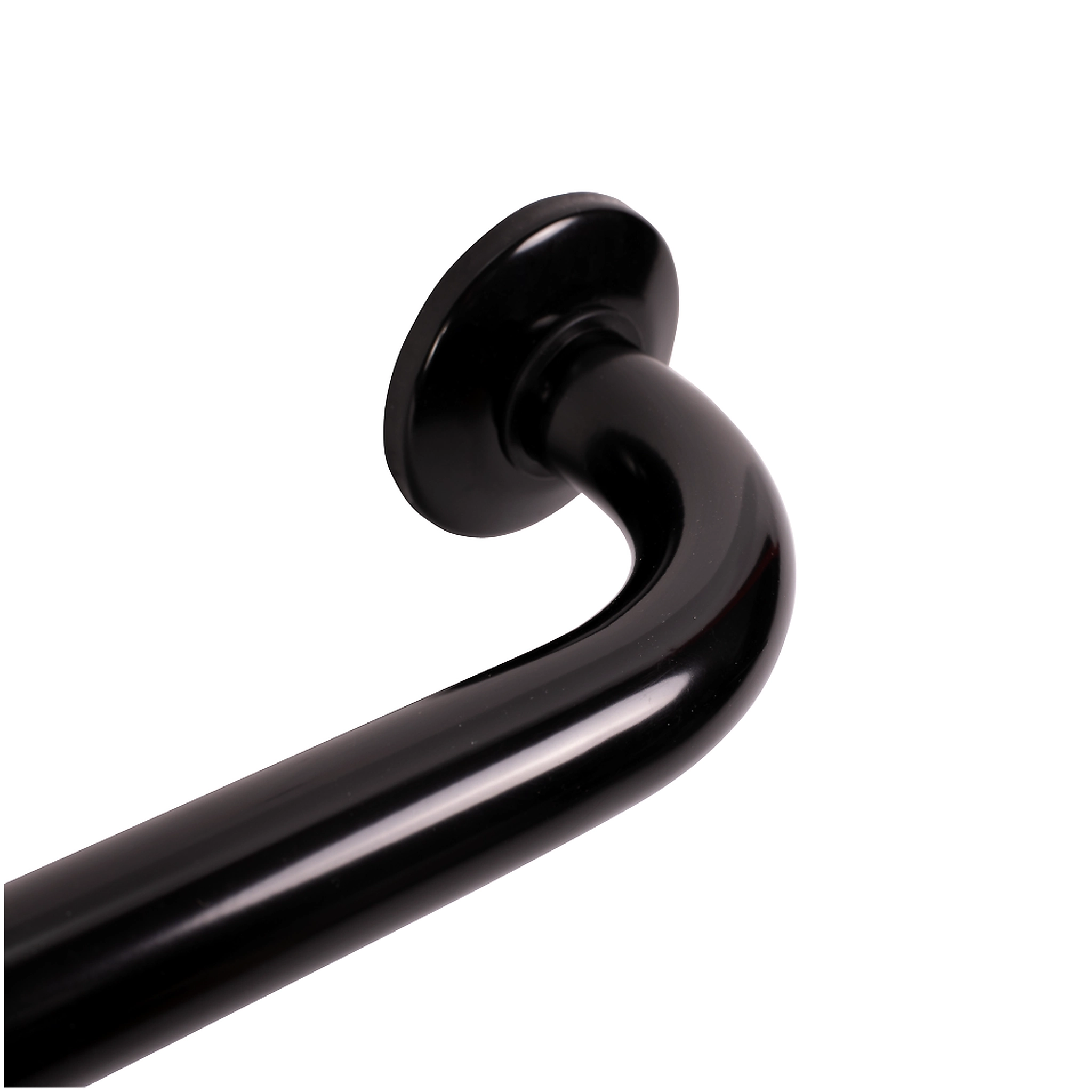

Faneco Straight Grab Bar for People with Disabilities, 50 cm, ⌀ 32 mm, black, steel
Faneco Straight Grab Bar for People with Disabilities, 50 cm, ⌀ 32 mm, black, steel - Image 2
Faneco Straight Grab Bar for People with Disabilities, 50 cm, ⌀ 32 mm, black, steel - Image 3
Faneco Straight Grab Bar for People with Disabilities, 50 cm, ⌀ 32 mm, black, steel - Image 4
Faneco Straight Grab Bar for People with Disabilities, 50 cm, ⌀ 32 mm, black, steel - Image 5

Faneco Straight Grab Bar for People with Disabilities, 50 cm, ⌀ 32 mm, black, steel

Code: S32UP5SWC    EAN: 5901764297482

The Faneco straight bathroom grab bar, 500 mm long, is designed for restrooms and washrooms adapted for people with limited mobility. The model is made of carbon steel coated with black epoxy paint, with a tube diameter of Ø32 mm. The grab bar can be mounted vertically or horizontally on the wall, and the 6-screw mounting system ensures a stable installation with a maximum load capacity of 120 kg.

A product for people with mobility impairments
2D and 3D Models - dwg2D and 3D Models - dwgUser and Installation ManualUser and Installation Manual
Add to quote request

To view prices and buy online, log in or add products to a quote request.

If you need a larger quantity, contact us

About the product

Product typeStraight Grab Bars
CategoryGrab bars
BrandFaneco
EAN5901764297482

Features and functions

Max. load (kg)120.0 kg

Appearance and finish

ColorBlack
Handrail shapeStraight
Finish typeBlack epoxy paint

Materials

MaterialCarbon steel
Grab Bar Steel Thickness (mm)1.5 mm
Rosette Steel Thickness (mm)0.5 mm
Coating thickness (µm)70.0 µm
Support Steel Thickness (mm)3.0 mm
Steel joiningTIG welding

Dimensions and weight

Pipe diameter (mm)32.0 mm
Height (mm)75.0mm
Width (mm)575.0 mm
Depth (mm)125.0mm
Grab Bar Length (mm)500.0 mm
Bend angle (°)90.0 °
Distance from wall (mm)86.0 mm
Support diameter (mm)75.0 mm
Rosette diameter (mm)76.0 mm
Weight (kg)1.0 kg

Mounting and connections

Installation orientationVertical or horizontal
Mounting methodwall-mounted
Mounting hole diameter (mm)6.5 mm
Number of mounting points6
Wall plug size (mm)8mm x 50mm
Screw size (mm)5mm x 60mm

Set contents

Wall plugs includedYes
Screws includedYes

Warranty

Warranty (years)2
Warranty Typedoor-to-door

Logistics – unit carton

Carton Height (mm)90.0 mm
Carton Width (mm)590.0 mm
Carton Depth (mm)125.0 mm
Carton weight1.2 kg
A simple wall-mounted grab bar designed for vertical or horizontal installation in a toilet or shower area. It provides the user with stable support, facilitating safe and independent use of bathroom fixtures.
The handrail is made of carbon steel coated with black epoxy paint. The tube has a diameter of Ø32 mm and a wall thickness of 1.5 mm. The steel components are joined using the TIG welding method.
  • Type: straight handrail
  • Installation orientation: vertical or horizontal
  • Length: 500 mm
  • Material: carbon steel
  • Finish: black epoxy paint
  • Pipe diameter: Ø32 mm
  • Pipe thickness: 1.5 mm
  • Bracket diameter: Ø75 mm
  • Bracket thickness: 3 mm
  • Diameter of the cover plate: Ø76 mm
  • Rosette thickness: 0.5 mm
  • Maximum load: 120 kg
  • Joining components: TIG welding
  • Mounting: wall-mounted, 6-screw
  • Diameter of mounting holes: Ø6.5 mm
  • Overall dimensions: 75 × 575 × 102 mm
  • Weight: 1.0 kg
